Ultrasonic mortise motion sensor Smart Stairway US-SR042 (Product code: )

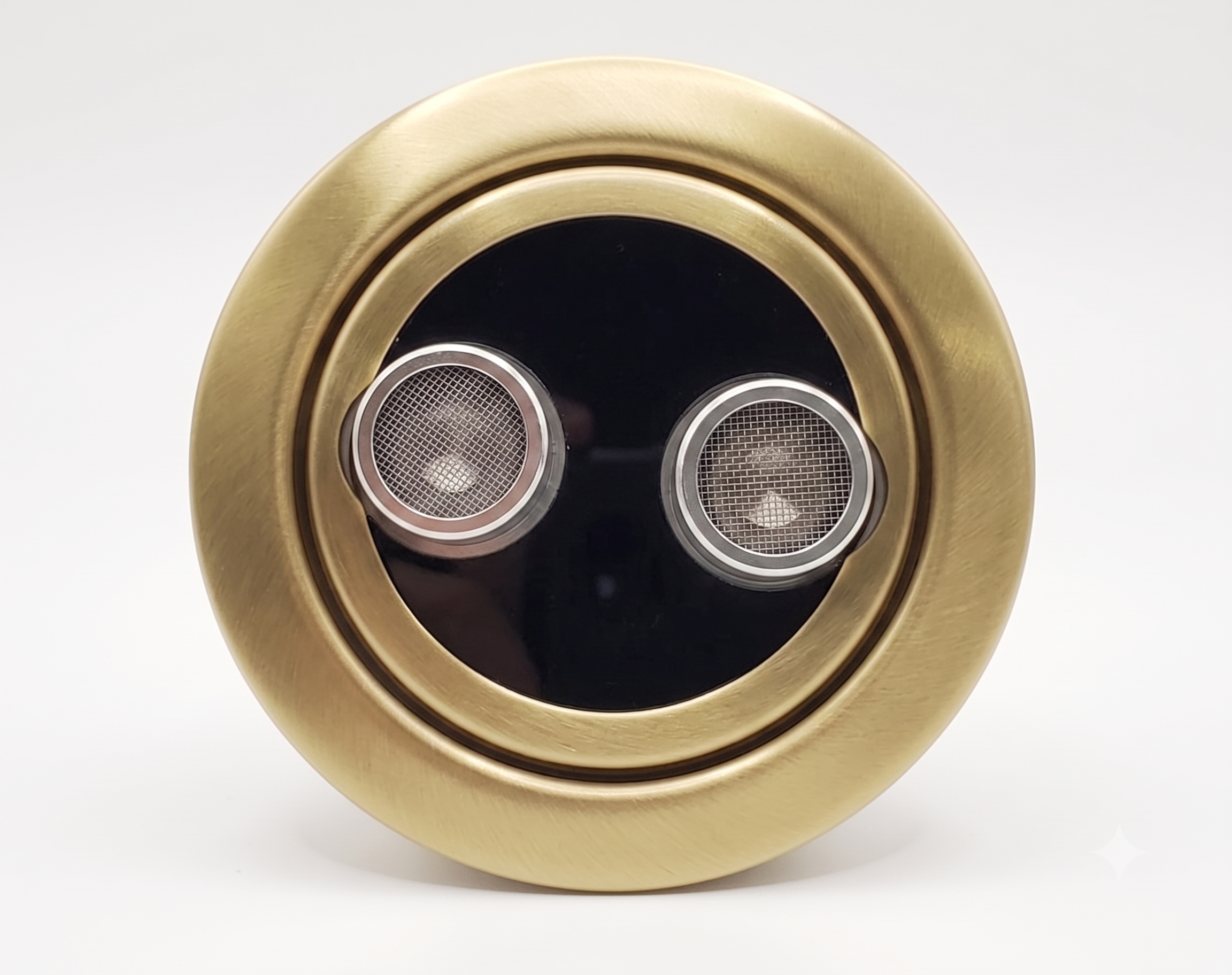

Ultrasonic Sensor US-042
Zoom image
Ultrasonic Sensor US-042
Ultrasonic mortise motion sensor Smart Stairway US-SR042
US-042 sensor
Price: 8.00 USD
plus shipping
Available
Quantity:

The ultrasonic motion sensor (ultrasonic rangefinder) is designed for use with digital receiving devices. The sensor can be used with the Smart Stairway SS26 step lighting controller. The sensor is designed for installation in a mortise box (hole) with a diameter of 65 mm. The operation of the ultrasonic rangefinder is based on the principle of measuring the time it takes for reflected ultrasound to travel the distance from the rangefinder to the obstacle. The sensor cannot ensure correct operation if sound-absorbing surfaces are used. The processing time of one measurement is 400 ms. To ensure error-free operation, the principle of a differentiated value from three consecutive measurements is used

Main parameters of the module
Parameter Meaning
Supply voltage DC 4.7V- 5V
Current on OUT <35uA
Detection distance 0.05 - 4m (adjustable)
Detection angle up to 45°
Pulse duration on detection 400 ms.
Blocking time until next measurement 0.5 sec.
Working temperature -20 — +80°C
